Rental Tool Kit: VAS611007-REN

Available for rent to Volkswagen Dealers within the USA ONLY.

Tool software is available on ServiceNet and the USB drive provided with the tool kit.

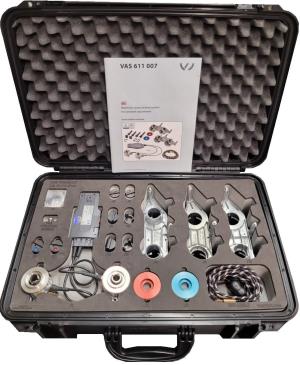

VAS611007-REN Includes:

• VAS611007 - Electronic Measuring System Camshaft Position
• VAS611007/19 - Adapter Set 1.5L EA 211 EVO2
• Shipping Case

Application:

VAS611007 & VAS611007/19 are used in conjunction with the diagnostic testers for checking and adjusting the valve timing on the 1.5l TSI EVO and 1.5l EA 211 EVO2.  Thanks to the high measuring accuracy and permanent measurement, dynamic influences on the valves and toothed belts can be taken account of.  The supplied software makes it possible to read-off the setting values directly on the tester and document the results.

Individual Replacement Parts:

• VAS 611 007/1 - Angle sensor
• VAS 611 007/2 - Securing ring
• VAS 611 007/3 - Clamping ring
• VAS 611 007/5 - Adapter for angle sensor
• VAS 611 007/6 - Adapter for camshaft
• VAS 611 007/7 - Adapter for camshaft
• VAS 611 007/9 - Adapter for camshaft
• VAS 611 007/10 - Adapter for camshaft
• VAS 611 007/15 - Adapter for camshaft housing
• VAS 611 007/16 - Adapter for camshaft (inlet side)
• VAS 611 007/17 - Adapter for camshaft (exhaust side)
• VAS 611 007/19 - Adapter Set
• USB Software - Also available on ServiceNet
• Operation Manual
• Shipping Case
